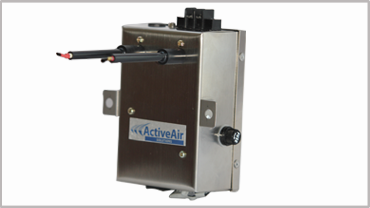

AAS DM2400

Specification
 Air Flow Capacity (CFM)    0 to 2,400
 Pressure Drop (Inches W.C.)    0.01
 Housing Material Aluminum    Stainless Steel
 Weight (lbs)    2.0
 Max Operating Temperature (F)     160
 Dimensions - Inches (L x W x H)    5.0 x 3.3 x 2.1
Electrical
 Voltage*;    24/115/230 VAC
 Power Consumption    6 VA
 Current Draw (Amps)    0.24 / 0.05 / 0.03
 Frequency (Hz)    50 or 60
 Internal Fuse     0.5
 Field Electrical Connections**    Terminal Blocks
 Approvals / Listings    ETL
*Requires external power supplies to convert to 12VDC
AAS-P2412 - 24VAC Input with 12VDC output
AAS-UP12 - 115-240VAC Input with 12VDC output
AAS-UPW12 - 115VAC Input with 12VDC output wall plug
**12VDC from power supplies is provided to the AAS-DM by use of a 2.5mm DC power cord provided by AAS. Other than the wall plug the other two power supplies have terminal blocks for field electrical connections.
